Samsung GT-I9300 EMMC DUMP

 SAMSUNG GT-I9300 EMMC DUMP  with efs file

What inside the package?

after writing the dump, flash EFS file first before flashing the whole 4 files firmware.

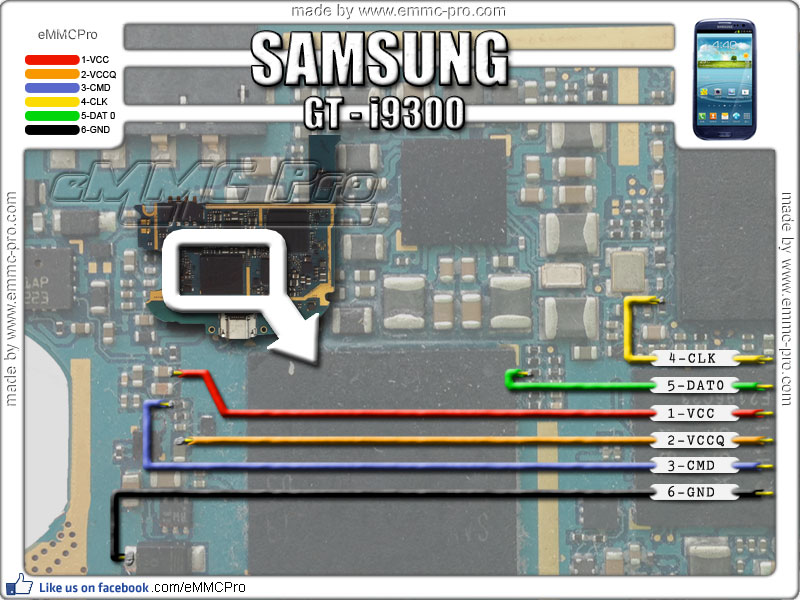

EMMC ISP PINOUT

credits to owner

TIPS

• flash the latest firmware version after writing the dump to avoid bootlooping.
• use a fine soldering tip to not damage the resistor while connecting the magnetic wires and always use fix 30 watts soldering iron to not end up with burned components and pads.
• 1.5 inches of magnetic wire length is enough to make a good contact between your board and your advance emmc tool.
• make sure that your programmer tool are set to lower voltage before you start, to avoid over voltage and damaging emmc. 1.8v is the lowest programmer voltage. some emmc requires low voltage input to write dump.

GOODLUCK!
